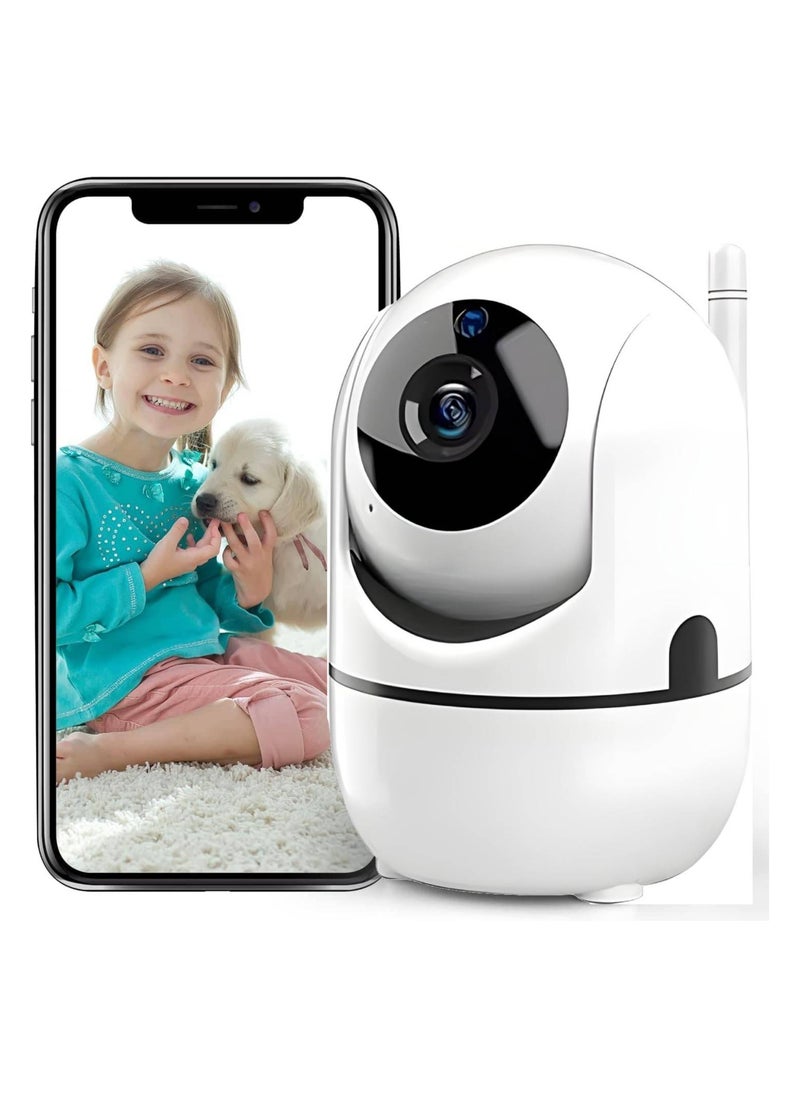

Generic Rubo Safe Live R7-20U-8X Rubo Safe Live 3X3M

Master chip processor Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog Image sensor 2 2m 1/3.2" SC2331 High performance CMOS sensors Operating system Embedded LINUX operating system Image coding format Smart H.265X APP Super Look (Android and IOS support) Effective video pixel 2MP Video processing H.265AI coding, double code stream,AVI format; Bitstream 0.1M~10Mpbs adjustable; The frame rate is adjustable from 1 to 30 frames per second resolution Main code stream: 1920*1080@12fps; Substream: 800*448@12fps Minimum illuminance 0.01 LUX/pro series lens 5x zoom perspective 90 ° Video flip Flip up and down/flip side to side Light control mode Starlight full color/intelligent warning/infrared night vision Number of fill lights 4 infrared +6 white Head control Rotation Angle level :355°; Vertical :90° Head flip Flip up and down/flip side to side Coding standard G.711 pickup support horn support Video file size ≈12G/ day Record Mode Manual record, motion detection record, scheduled record, alarm record Video storage TF Card/Cloud storage support TF card（max 128GB) or cloud storage Remote playback Support Image capture Support WIFI 2.4G WIFI 802.11b/g/n Pairing WiFi Smartlink distribution network addition, AP hotspot addition, QR code scanning. Bluetooth fast networking Network Protocol Support TCP/IP, ONVIF, RTSP Reset key Support 360degree coordinate positioning Support Power DC 5V 1.6A power interfac Micro Type-A Suitable place outdoor、Home、shop、School、factory； Installation mode Wall hanging, lifting, flat Working Temperature -20℃－＋55℃ Working humidity 10%－90%

• Rubo Safe Live R7-20U-8X
• 2 Way Audio
• 5x zoom
• PTZ Technology
• HD Resolution
• Night Vision
